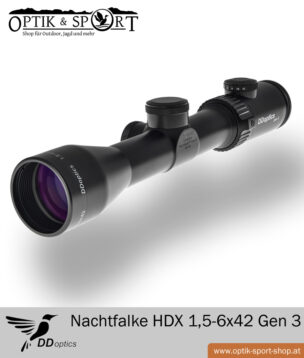

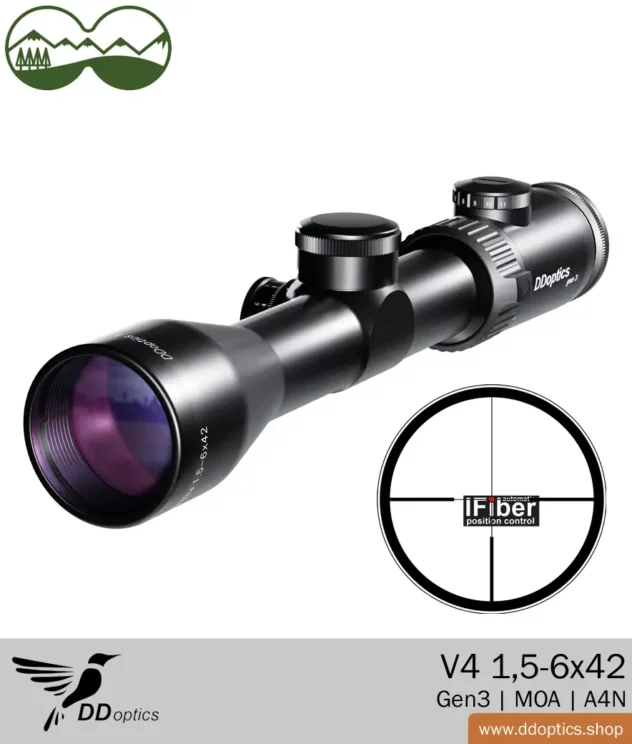

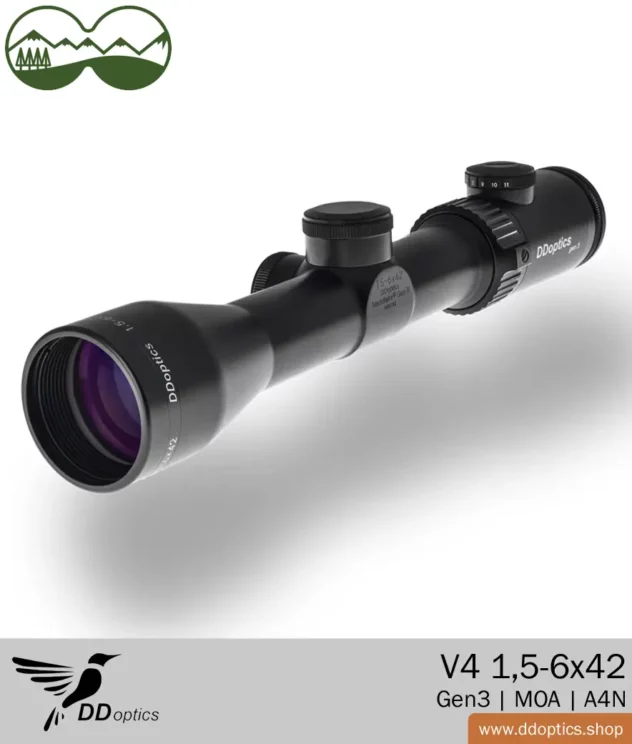

DDoptics Nighteagle 1.5-6×42 riflescope | V4 | A4N | MOA adjustment - Gen 3

DDoptics generation 3 riflescopes

What is new about the DDoptics riflescopes of the latest generation? At first glance, 3 changes immediately stand out EyeThe retina of our eyes has two different types of sensory cells or receptors, the cones (for day vision) and the rods (for night vision). " More info:

1. The magnification adjustment ring has undergone a striking design change and now offers a better grip thanks to its coarser structure.
2. The ReticleDifferent reticles for riflescopes. DDoptics uses the following 3 reticles for its riflescopes, depending on the target optics: " More info 4 became much finer and makes more space in the centre.
3. The Reticle adjustment is made of metal, is more clearly defined and has Doubleturn and Zerostop.

But what are the benefits of all these new features in the DDoptics Gen 3?

Generation III comes up trumps with a newly developed reticle, greatly improved RemunerationIf light hits a glass-air surface (e.g. with a roof prism), the reflection causes a loss of light. " More info as well as a robust, waterproof and hard-running reticle quick adjustment.

This shows a Zerostop for the fast and exact return to the zero point of the ASV - Height adjustment for long shooting distances and double scaling (double turn)
in the side setting to take the wind/movement speed into account.

Robust adjustment mechanism for tough use with Zerostop & ASV

The Reticle adjustment turrets of DDoptics aiming optics of Generation III consist of a robust aluminium alloy and are free of all plastic parts. All aluminium parts are coated with the new, non-glossy DDoptics fine-black anodised coating.
The Adjustment mechanism has been adapted to the Tactical version which means that it is not only highly impact-resistant and completely WaterproofWith a watertight lens, a clean and dry gas filling in the form of an argon or nitrogen filling creates an "internal climate" that prevents fogging. " More infobut also hard-moving and thus protected against unintentional adjustment. This means that the Reticle adjustment in everyday hunting can also be used "open", i.e. without screw cap, to be able to quickly adjust the reticle depending on the situation

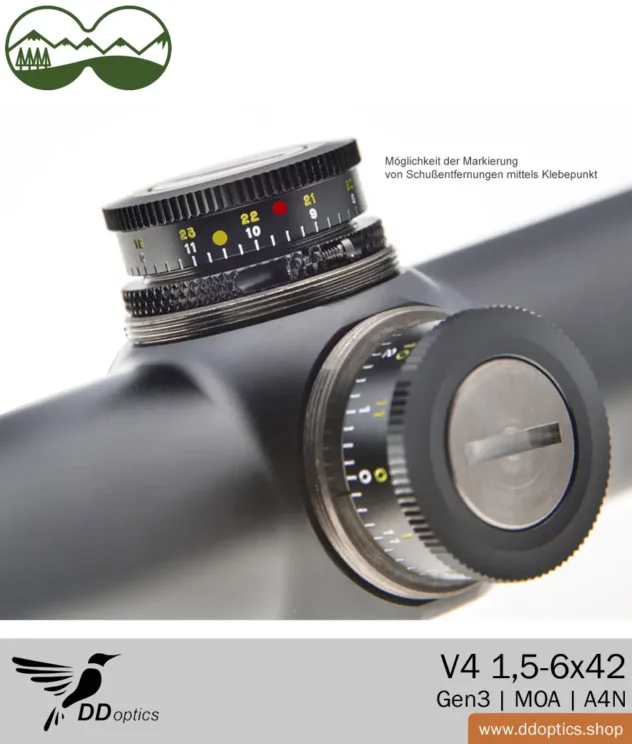

Practical quick reticle adjustment

On a double scale (double turn) on the height adjustment tower, the number of click adjustments made can be and set accordingly.
After firing, the reticle adjustment can be "zeroed". The Zerostop ring is then turned as far as it will go.
Subsequently, the Zero adjustment countered from below using the Zerostop ring to reach a stop at the zero position.
Starting from the zero position, various shot distances can be preset using a marking system - assuming knowledge of the loading.
The side adjustment tower is labelled with two opposing scales.
From the SettingAlignment in binoculars refers to the parallel alignment of the two halves of the binoculars. " More info Starting from zero, the Reticle depending on wind direction and wind force or any movement of the target can be preset.

High-performance optics - improved contrast | CT glass

The DDoptics Generation III riflescopes utilise high-performance CT (Clear Transmission) glass with full DDlucid coating.
This banishes reflections or stray light and provides a brilliant image with outstanding edge sharpness properties.
The Light transmissionLight transmission is the ability of optical glass or optical systems to "let through" as many light rays as possible. " More info reaches peak values of up to 94.7 % (day) and 93 % (NightFor night glasses, which are ideal for sitting game and as sow glasses, the light intensity is the most important feature. " More info).
Further advantages of the newly used Glass typeIn addition to the coating of optics, the glass quality or type of glass is one of the most important quality factors for binoculars and riflescopes " More info is a significantly improved contrast behaviour and the reduction of colour fringing.

Illuminated dot from backlighting to night vision device function

The Fibre optic illuminated dot, from DDoptics with completely redesigned electronic circuitry is kept so small that only the smallest possible target coverage is achieved.
Thanks to fibre optic technology, the Light pointThe choice of reticle and the associated mode of operation of the illuminated dot is of decisive importance when purchasing. " More info not only darker with strong dimming, but also finer. The Light point can be dimmed continuously by 100 per centuntil it can no longer be seen with the human eye. The reticle then works like a target optic without an illuminated unit. When the illuminated dot is activated, there is no annoying glow or reflections within the optics.
As the Since the lighting unit is produced by hand, special customer requirements can be taken into account individually. The illuminated dot is visible against the sun at full intensity and can only be seen below level 4 with a night-vision picture tube. In the version IfiberA state-of-the-art position and movement sensor registers every movement and the position of the optics. A controller interprets this data so that the illuminated dot is there when you need it. " More info the light point is equipped with one of the most highly developed, intelligent and automatic electronics.

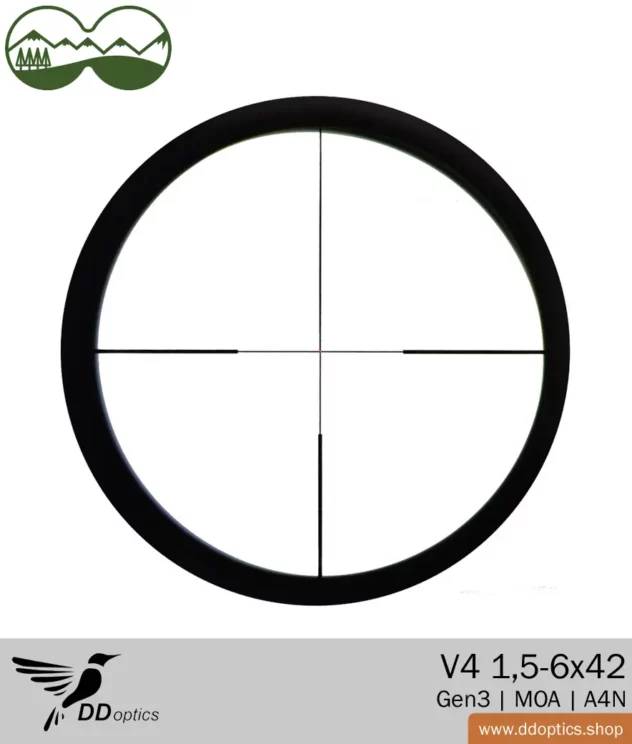

New reticle 4 & minimum target coverage

At the View through the new Generation III of the "Nachtfalke HDX" riflescopes the viewer immediately recognises the practical design:

• The crosshairs in reticle 4 are much finer and the slightly thicker outer bars are only half as thick and are much further apart.
• With Great advantage especially for the hunter in low light conditionsas the target is only minimally obscured and thus a lightning-fast and safe shot is optimally supported.
• The DDoptics "2.5-10×56" and "2.5-15×50" riflescopes are equipped with this innovative "New Reticle 4".
