V6 HDX - The driven hunt specialist from DDoptics V6 1-6×24 with A4N reticle. This optical sight is equipped with an extremely wide field of view of 37.8 metres at 100 metres. Optionally with intelligent IFibre light point with €99 surcharge.

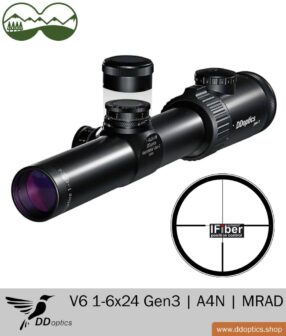

Brief overview DDoptics riflescope V6 1-6x24 Gen 3 MRAD
Tube
30 mm mono tube
Field of vision: m @100m
37,8 - 6,3 m
Optical system
1-6-fold
Interpupillary distanceThe interpupillary distance is the optimum distance between the eyepiece lens and the pupil of the eye. " More info
99 - 100 mm
LensWhen we talk about the objective lens of binoculars, we mean the front lens. The front lens is the foremost lens of the objective. " More info
24 mm
Length
261 mm
ReticleDifferent reticles for riflescopes. DDoptics uses the following 3 reticles for its riflescopes, depending on the target optics: " More info
A4N
Weight
535 g
Light pointThe choice of reticle and the associated mode of operation of the illuminated dot is of decisive importance when purchasing. " More info
Standard or iFibre
Anti-fog protection
Nitrogen filling against misting
Focus/parallax
Adjustable lens 25 m to infinity
Tightness
Water and impact resistant
Nighteagle 1-6×24 V6 riflescope from DDoptics - compact riflescope with 6x zoom, A4B reticle and MRAD adjustment - 1 cm / 100 m per click
The new 3rd generation of DDoptics riflescopes
Like all 3rd generation targeting optics, the DDoptics V6 1-6×24 HDX about these features.
In addition to the improved optics (better RemunerationIf light hits a glass-air surface (e.g. with a roof prism), the reflection causes a loss of light. " More infoCT glass, fewer centring errors and higher Light transmissionLight transmission is the ability of optical glass or optical systems to "let through" as many light rays as possible. " More info), it is above all the new metal towers with the harder 0.1 MRAD Click adjustment including the Zerostop and the newly developed Corsshair reticle, which is made from this DDoptics riflescope make something very special.
DDoptics V6 - 1-6×24 riflescope with ultra-wide field of view
The DDoptics target optics 1-6×24 V6 HDX leaves nothing to be desired by the discerning hunter when it comes to modern driven hunt riflescopes.
With a compact Total length of 261 mm, a weight of 500 g and a tube diameter of 30 mm the scope is handy and fits on every rifle. This sight is equipped with an extremely wide Field of visionThe size of the field of view indicates the width of the terrain that can be observed through the binoculars at a distance of 1000 metres. " More info of 37.8 metres per 100 metres.
The Driven hunt riflescope corresponds to a red dot reticle at the lowest magnification level and thus guarantees one of the most important points when hunting on the move, namely rapid target acquisition. The new A4N reticle was specially developed for driven hunts.
⇒ Metal reticle adjustment ⇒ CT GlassIn addition to the coating of optics, the glass quality or type of glass is one of the most important quality factors for binoculars and riflescopes " More info (Clear Transmission) ⇒ Double scaling ⇒ Extreme light transmission up to 94.7% ⇒ Hard tactical click detent ⇒ IFiber Control possible ⇒ A4N reticle in 2nd image planeThe reticle in the 2nd focal plane does not simply magnify when looking through the optical sight. " More info ⇒ Zero stop / Zerostop ⇒ Bulletproof test: 375 H&H 1000 shots ⇒ Infinitely adjustable Parallax compensationIf a shooter does not look "straight" but "diagonally" through the telescopic sight eyepiece, an aiming error occurs - the so-called parallax. " More info ⇒ Hard, tactical 0.1 MRAD click detent (1cm/click) ⇒ Adjustment travel 484 clicks
Large zoom, impressive exit pupil with the DDoptics V6 1-6×24
Thanks to its 6x zoom range are possible with the 1-6×24 V6 HDX also responsible for shots at greater distances. For example, if the game moves far in front of the hunters or is waiting.
An additional guarantee for a quick and safe stop is the large Exit pupilIn addition to the twilight number, the binocular exit pupil at the eyepiece of the binoculars is also very important for seeing in twilight (twilight vision). " More info (12.0-4.06 mm) for riflescope. This allows the hunter to get his target in front of both eyes that crucial fraction of a second faster.
Bright illuminated dot in the reticle of the driven hunt riflescope
The new A4N reticle remains unchanged in size ( 2nd image plane ) when the magnification is changed and is fine and reflex-free red Glass fibreA state-of-the-art position and movement sensor registers every movement and the position of the optics. A controller interprets this data so that the illuminated dot is there when you need it. " More info -Luminous point which can be dimmed precisely and continuously.
The illuminated dot unit is user-friendly on the EyepieceThe eyepiece is the lens group of an optical system that faces the eye. The eyepieces consist of several separate lenses - achromats (3-6 individual lenses). " More info attached. The fibre optic technology ensures that Side and cross-fade effects excluded are. When the illuminated dot is activated, there is no annoying glare or reflections.
The Reticle adjusts by 0.1 MRAD (1 cm per 100 m) per click. The hard tactical click adjustment works with absolute repeat accuracy. The interchangeable ring for MagnificationThe magnification of a binocular model is perhaps the most misunderstood feature. High magnification can be useful! " More info /Reduction of the reticle on the eyepiece is non-slip and non-slip.
Total adjustment range for the aiming optics:
484 clicks
corresponds to 48.4 MRAD
corresponds to 24.2 MRAD per page
Recommended use v6 1-6×24
An extremely wide Field of view of almost 40 metres, a 6x zoom The outstanding features of the 1-6×24 V6 HDX riflescope for IPSC, driven hunts and driven hunts are the easy aiming even at longer distances.
A reflex-free and excellently perceptible fibre optic illuminated dot gives the hunter a high level of safety when hunting. fast target acquisition and for fleeting shots. Fully recommended for all IPSC Rifle disciplines.
DDoptics riflescope
V6 1-6×24
Generation:
3
RemunerationIf light hits a glass-air surface (e.g. with a roof prism), the reflection causes a loss of light. " More info:
HDX
EnlargementThe magnification of a binocular model is perhaps the most misunderstood feature. High magnification can be useful! " More info:
1-6 x
LensWhen we talk about the objective lens of binoculars, we mean the front lens. The front lens is the foremost lens of the objective. " More info Ø LensThe use of aspherical lenses leads to a reduction in the overall length of the binoculars and in some cases to a significant reduction in weight. " More info:
24 mm
Exit pupilIn addition to the twilight number, the binocular exit pupil at the eyepiece of the binoculars is also very important for seeing in twilight (twilight vision). " More info Ø:
12-4.06 mm
Twilight numberIn order to be able to recognise details over long distances even in twilight, binoculars with high magnification and corresponding twilight performance (e.g. 10x56 or 8x56) are recommended. " More info:
4,89-12
Field of visionThe size of the field of view indicates the width of the terrain that can be observed through the binoculars at a distance of 1000 metres. " More info at 100m:
12,6-3,4 m
Interpupillary distanceThe interpupillary distance is the optimum distance between the eyepiece lens and the pupil of the eye. " More info:
99-100 mm
Dioptre compensation:
-3 to +3 DioptresThe dioptre correction on the eyepiece is used to compensate for different visual acuities of the eyes. " More info
ReticleDifferent reticles for riflescopes. DDoptics uses the following 3 reticles for its riflescopes, depending on the target optics: " More info Optics:
New reticle crosshair
Luminous point IIUnfortunately, fine details such as the light unit are often skimped on. And this has far-reaching consequences! Not so with DDoptics. " More info:
Yes and IFiberA state-of-the-art position and movement sensor registers every movement and the position of the optics. A controller interprets this data so that the illuminated dot is there when you need it. " More info Control
Image plane reticle:
2nd image planeThe reticle in the 2nd focal plane does not simply magnify when looking through the optical sight. " More info
Reticle adjustment / click:
0.1 MRAD
Max. adjustment travel:
+-24.2 MRAD
Parallax compensationIf a shooter does not look "straight" but "diagonally" through the telescopic sight eyepiece, an aiming error occurs - the so-called parallax. " More info:
-
Surface:
fine black
Centre tube Ø:
30 mm
Lens Ø outside:
24 mm
EyepieceThe eyepiece is the lens group of an optical system that faces the eye. The eyepieces consist of several separate lenses - achromats (3-6 individual lenses). " More info Ø outside:
43 mm
Total length:
261 mm
Weight:
535 grammes
DDoptics generation 3 riflescopes
What is new about the DDoptics riflescopes of the latest generation? At first glance, 3 changes immediately stand out EyeThe retina of our eyes has two different types of sensory cells or receptors, the cones (for day vision) and the rods (for night vision). " More info:
The magnification adjustment ring has undergone a striking design change and now offers a better grip thanks to its coarser structure.
The ReticleDifferent reticles for riflescopes. DDoptics uses the following 3 reticles for its riflescopes, depending on the target optics: " More info 4 became much finer and makes more space in the centre.
The Reticle adjustment is made of metal, is more clearly defined and has Doubleturn and Zerostop.
DDoptics ASV Gen 3 down
But what are the benefits of all these new features in the DDoptics Gen 3?
Generation III comes up trumps with a newly developed reticle, greatly improved RemunerationIf light hits a glass-air surface (e.g. with a roof prism), the reflection causes a loss of light. " More info as well as a robust, waterproof and hard-running reticle quick adjustment.
This shows a Zerostop for the fast and exact return to the zero point of the ASV - Height adjustment for long shooting distances and double scaling (double turn)
in the side setting to take the wind/movement speed into account.
Robust adjustment mechanism for tough use with Zerostop & ASV
DDoptics ASV Gen 3 Tactical
The Reticle adjustment turrets of DDoptics aiming optics of Generation III consist of a robust aluminium alloy and are free of all plastic parts. All aluminium parts are coated with the new, non-glossy DDoptics fine-black anodised coating.
The Adjustment mechanism has been adapted to the Tactical version which means that it is not only highly impact-resistant and completely WaterproofWith a watertight lens, a clean and dry gas filling in the form of an argon or nitrogen filling creates an "internal climate" that prevents fogging. " More infobut also hard-moving and thus protected against unintentional adjustment. This means that the Reticle adjustment in everyday hunting can also be used "open", i.e. without screw cap, to be able to quickly adjust the reticle depending on the situation
Practical quick reticle adjustment
On a double scale (double turn) on the height adjustment tower, the number of click adjustments made can be and set accordingly.
After firing, the reticle adjustment can be "zeroed". The Zerostop ring is then turned as far as it will go.
Subsequently, the Zero adjustment countered from below using the Zerostop ring to reach a stop at the zero position.
Starting from the zero position, various shot distances can be preset using a marking system - assuming knowledge of the loading.
The side adjustment tower is labelled with two opposing scales.
From the SettingAlignment in binoculars refers to the parallel alignment of the two halves of the binoculars. " More info Starting from zero, the Reticle depending on wind direction and wind force or any movement of the target can be preset.
The DDoptics Generation III riflescopes utilise high-performance CT (Clear Transmission) glass with full DDlucid coating.
This banishes reflections or stray light and provides a brilliant image with outstanding edge sharpness properties.
The Light transmissionLight transmission is the ability of optical glass or optical systems to "let through" as many light rays as possible. " More info reaches peak values of up to 94.7 % (day) and 93 % (NightFor night glasses, which are ideal for sitting game and as sow glasses, the light intensity is the most important feature. " More info).
Further advantages of the newly used Glass typeIn addition to the coating of optics, the glass quality or type of glass is one of the most important quality factors for binoculars and riflescopes " More info is a significantly improved contrast behaviour and the reduction of colour fringing.
Illuminated dot from backlighting to night vision device function
The Fibre optic illuminated dot, from DDoptics with completely redesigned electronic circuitry is kept so small that only the smallest possible target coverage is achieved.
Thanks to fibre optic technology, the Light pointThe choice of reticle and the associated mode of operation of the illuminated dot is of decisive importance when purchasing. " More info not only darker with strong dimming, but also finer. The Light point can be dimmed continuously by 100 per centuntil it can no longer be seen with the human eye. The reticle then works like a target optic without an illuminated unit. When the illuminated dot is activated, there is no annoying glow or reflections within the optics.
As the Since the lighting unit is produced by hand, special customer requirements can be taken into account individually. The illuminated dot is visible against the sun at full intensity and can only be seen below level 4 with a night-vision picture tube. In the version IfiberA state-of-the-art position and movement sensor registers every movement and the position of the optics. A controller interprets this data so that the illuminated dot is there when you need it. " More info the light point is equipped with one of the most highly developed, intelligent and automatic electronics.
New reticle 4 & minimum target coverage
At the View through the new Generation III of the "Nachtfalke HDX" riflescopes the viewer immediately recognises the practical design:
The crosshairs in reticle 4 are much finer and the slightly thicker outer bars are only half as thick and are much further apart.
With Great advantage especially for the hunter in low light conditionsas the target is only minimally obscured and thus a lightning-fast and safe shot is optimally supported.
The DDoptics "2.5-10×56" and "2.5-15×50" riflescopes are equipped with this innovative "New Reticle 4".
