From: Original price was: € 1.799,00.€ 1.619,00Current price is: € 1.619,00. (€ 1.349,17 exkl. USt.)
A new, extreme targeting optic that offers interesting Areas covers. From sport shooting to mountain hunting as a spotting scope replacement with 40-fold Enlargement... Optionally with intelligent tacA IFibre light point for only €99,- extra charge.
| Tube: | 34 mm mono tube | Field of vision: m @100m: | 8,8-0,9 m |
| Optical system: | 4-40-fold | Interpupillary distanceThe interpupillary distance is the optimum distance between the eyepiece lens and the pupil of the eye. " More info: | 87-101 mm |
| LensWhen we talk about the objective lens of binoculars, we mean the front lens. The front lens is the foremost lens of the objective. " More info: | 50 mm | Length: | 371 mm |
| ReticleDifferent reticles for riflescopes. DDoptics uses the following 3 reticles for its riflescopes, depending on the target optics: " More info: | TacA | Weight: | 1046 g |
| Light pointThe choice of reticle and the associated mode of operation of the illuminated dot is of decisive importance when purchasing. " More info | Standard or iFibreA state-of-the-art position and movement sensor registers every movement and the position of the optics. A controller interprets this data so that the illuminated dot is there when you need it. " More info | Fogging protection: | Nitrogen filling against misting |
| Focus/parallax: | Adjustable lens 25-1000 m to infinity | Tightness: | Water and impact resistant |
The DDoptics ZF 4-40×50 DDMP is the FIRST V10 aiming optics with 10x zoom from DDoptics as a NEXT LEVEL sporty extension to the proven V6 5-30×50 Telescopic sight.
The DDMP 4-40×50 is the first V10 riflescope from DDoptics and therefore has a particularly flexible range of use. The ultra-modern 4-40×50 DDMP riflescope covers the spectrum for sport shooters from 100 m to 1000 m in particular.
With a Huge adjustment travel 329 MOA1 MOA (one minute of angle or minute of angle) is 1/60th of a degree of angle. " More info distances of up to 2000 m and more can be realised, although in the extreme range of reticle adjustment the MagnificationThe magnification of a binocular model is perhaps the most misunderstood feature. High magnification can be useful! " More info must be reduced to 20x for technical reasons.
However, the 40x magnification can be used in the range of 100-1000m. The entire adjustment range is overcome with only 3 turns, which makes it possible to change a wide range of distances extremely quickly.
Whether as a sporting riflescope in the long range or the medium range between 100 and 1,000 metres. The state-of-the-art 4-40×50 DDMP riflescope covers a wide range of applications.
Restriction: For At long distances over 1000 m, the reticle adjustment must be adjusted to the very edge of the range. For technical reasons, the resolution of the riflescope is no longer high enough to realise a 40x magnification in this peripheral area of the optics.
Here the magnification must be reduced to 20x. All normal distances that can be realised for sporting purposes in Europe, where the reticle tends to be in the middle of the field of view, allow an image resolution of up to 40x.
⇒ DDMP - DDoptics Match Precision
⇒ Perfect for the discerning marksman
⇒ 329 MOA adjustment range enables extreme long shots
⇒ Robust 34mm tube
⇒ Large tactical metal turrets (no plastic)
⇒ Double scaling (double turn)
⇒ Internal zero stop for ASV (zero stop)
⇒ Hard tactical click detent
⇒ One revolution = 10 MRAD
⇒ New tacA reticle in the 1st image planeWhen the reticle is in the 1st focal plane, the reticle simply enlarges with the magnification adjustment. " More info
⇒ Powerful parallax levelling with 25-1000-∞

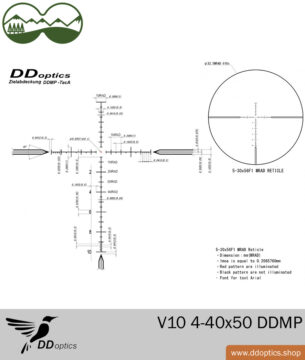

The TacA is extremely easy to use. The arrow-shaped tapered bars have been deliberately kept transparent so that nothing remains hidden behind the reticle.
The Light unit of the TacA is a perfectly balanced system with maximum dynamics. The first brightness levels only an extremely small light spot to recognise.
This can even be dimmed to such an extent that this also with a night vision device can be used. If the light point is turned up further, then Illuminates from a certain light intensity the Whole ballistic reticle with.
Depending on the application can be selected between the pure dot or the fully illuminated reticle. Automatic switch-off with intelligent control can also be selected for this optical sight.
After removing the Turret caps from the reticle adjustment of the 4-40×50 the tower can be by loosening 3 grub screws remove upwards. Underneath you will find the Zerostop in the form of a round, black disc.
The Zerostop is adjusted after firing by loosening the (also) 3 grub screws on the Zerostop disc.
When loose, the disc can be turned to the stop without any effect and then fixed again with the grub screws become.
You can see the stop on the picture between the target and the optical sight. Then the Replace the tower in the zero position and lock it in place using the 3 grub screws. The Zerostop now stops precisely at the distance you have set.
| DDoptics riflescope | V10 4-40×50 DDMP - MRAD |
| Generation: | no |
| RemunerationIf light hits a glass-air surface (e.g. with a roof prism), the reflection causes a loss of light. " More info: | HDX III |
| EnlargementThe magnification of a binocular model is perhaps the most misunderstood feature. High magnification can be useful! " More info: | 4-40 x |
| LensWhen we talk about the objective lens of binoculars, we mean the front lens. The front lens is the foremost lens of the objective. " More info Ø LensThe use of aspherical lenses leads to a reduction in the overall length of the binoculars and in some cases to a significant reduction in weight. " More info: | 50 mm |
| Exit pupilIn addition to the twilight number, the binocular exit pupil at the eyepiece of the binoculars is also very important for seeing in twilight (twilight vision). " More info Ø: | 7.2 - 1.3 mm |
| Twilight numberIn order to be able to recognise details over long distances even in twilight, binoculars with high magnification and corresponding twilight performance (e.g. 10x56 or 8x56) are recommended. " More info: | nA |
| Field of visionThe size of the field of view indicates the width of the terrain that can be observed through the binoculars at a distance of 1000 metres. " More info at 100m: | 7,04-1,05 m |
| Interpupillary distanceThe interpupillary distance is the optimum distance between the eyepiece lens and the pupil of the eye. " More info: | 85-97 mm |
| Dioptre compensation: | -3 to +3 DioptresThe dioptre correction on the eyepiece is used to compensate for different visual acuities of the eyes. " More info |
| ReticleDifferent reticles for riflescopes. DDoptics uses the following 3 reticles for its riflescopes, depending on the target optics: " More info Optics: | tacA |
| Luminous point IIUnfortunately, fine details such as the light unit are often skimped on. And this has far-reaching consequences! Not so with DDoptics. " More info: | Yes and IFiberA state-of-the-art position and movement sensor registers every movement and the position of the optics. A controller interprets this data so that the illuminated dot is there when you need it. " More info Control |
| Image plane reticle: | 1st image planeWhen the reticle is in the 1st focal plane, the reticle simply enlarges with the magnification adjustment. " More info |
| Reticle adjustment / click: | 1/8 MOA1 MOA (one minute of angle or minute of angle) is 1/60th of a degree of angle. " More info Adjustment |
| Reticle adjustment (scaling): | double |
| Max. adjustment travel: | 329 MOA |
| Yes | |
| Parallax compensationIf a shooter does not look "straight" but "diagonally" through the telescopic sight eyepiece, an aiming error occurs - the so-called parallax. " More info: | 25-1000 m - ∞ |
| Surface: | fine black |
| Centre tube Ø: | 34 mm |
| Lens Ø outside: | 58 mm |
| EyepieceThe eyepiece is the lens group of an optical system that faces the eye. The eyepieces consist of several separate lenses - achromats (3-6 individual lenses). " More info Ø outside: | 44 mm |
| Total length: | 371 mm |
| Weight: | 1046 grammes |
| DDoptics riflescope scope of delivery | Scope of delivery |
| Protective caps: | 1 pair |
| Battery CR2032: | 1 piece |
| Weight | 1,07 kg |
|---|---|
| Brand / Trade mark | |
| GTIN | 4260436313150 |
| Product type | |
| Lens diameter | x50 mm |
| Telescopic sight Hunting type | Mountain hunting, Sport |
| Riflescope size | 4-40×50 |
| Enlargement | 4-40x magnification |
| TARIC product type | Rifle Scope |
| TARIC | 90139005 |
| tacA illuminated dot | DDoptics tacA IFiber illuminated reticle, DDoptics tacA normal illuminated reticle |
|---|---|
| TARIC | 90139005 |
| TARIC product type | Rifle Scope |
| Riflescope size | 4-40×50 |
|---|---|
| Colour | |
| Brand / Trade mark | |
| TARIC | 90139005 |
| TARIC product type | Rifle Scope |
